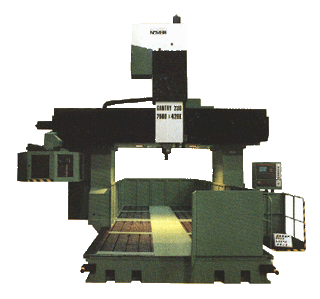

GANTRY DRILLING AND MILLING MACHINES
|
23
|
 |
| MODEL |
|
23
|
| SPINDLE - Z AXIS |
|
| Spindle taper |
ISO
|
50
|
| Spindle travel |
mm
|
800
|
| Spindle rpm range at constant
torque 1500 N |
rpm
|
5-112
|
| Spindle rpm range at constant
power 22KW |
rpm
|
112-3000
|
| Working feed range |
mm/min
|
1-3000
|
| Rapid feed |
mm/min
|
4000
|
| Downstroke control screw
diameter |
mm
|
63
|
| HEAD - Y AXIS |
|
| Traverse on crossrail |
mm
|
3100
|
| Auxiliary travel for tool
changer |
mm
|
380
|
| Working feed range |
mm/min
|
33000
|
| Rapid feed |
mm/min
|
6000
|
| On request |
|
12000
|
| Passage between uprights |
mm
|
2520-3020
|
| Larger on request |
|
| Min and max distance between spindle
nose and base |
mm
|
800-1600
|
| Passage under traverse |
mm
|
1960
|
| Different on request |
|
| Y axis control screw diameter |
mm
|
80
|
| PORTAL - X AXIS |
|
| Travel |
mm
|
4300-24000
|
| Surface of base plate |
mm
|
600024000x25003000
|
| T slot width / pitch |
mm
|
28H8 /200
|
| Working feed |
mm/min
|
3-3000
|
| Rapid feed |
mm/min
|
10000
|
| On request |
mm/min
|
12000
|
| STANDARD TYPE TOOL MAGAZINE |
|
| Tools capacity |
No.
|
24
|
| On request |
No.
|
36-48-60
|
| Max tool diameter in near
places |
mm
|
140
|
| Max tool diameter in alternated
places |
mm
|
210
|
| Max tool weight (each) |
Kg
|
20
|
| Max tool length |
mm
|
350
|
