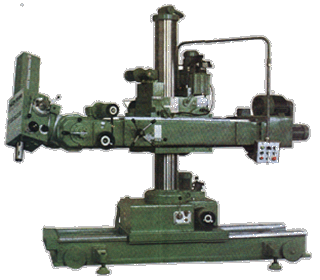

TRANSPORTABLE UNIVERSAL RADIAL DRILLS

TUG 60 S

TUG 80-I
MODEL
TUG 60 S
TUG 80-I
Drilling capacity in steel TS 600 MPa - feed 0,3 mm/rev
mm
60
80
Drilling capacity in iron cast TS 250 MPa - feed 0,3 mm/rev
mm
70
80
Tapping capacity in steel TS 600 MPa
mm
60
80
Spindle travel
mm
350
400
On request
mm
450

Spindle diameter
mm
60
95 (quill)
Spindle taper
Morse
5
5
No. Spindle rotation speed / range
rpm
9 / 30-45-70-100-155
-240-340-515-800
16 / 12,5-1000
Continuous variation on request
rpm
5-800

No. feeds / range
mm/rev
4 / 0.05-0.1-0.2-0.3
9 / 0.06-1
Max drilling thrust
N
15000
25000
Min and max distance between spindle axis and column axis
mm
1000-2120
1225-2225
Min and max distance between spindle nose and floor
mm
0-1940
0-1850
Min and max distance from spindle axis to floor (horizontal spindle)
mm
90-2750
695-3025
Vertical travel of arm
mm
1030
1100
Max tilting of arm downwards

21°
0°
Max tilting of arm upwards

9°
0°
Column travel on bed
mm
1500
1600
Bed size
mm
780x2570
1080x3100
With feet
mm
1200x2570

Head tilting (90° up and 90° down)

180°
Head rotation

360°
Column rotation

360°
Column diameter
mm
240
450
Machine height
mm
2520
3400
Arm horizontal rapid traverse
mm/min
1650
700
Arm vertical rapid traverse
mm/min
1500
980
Column travel on bed
mm/min
1650
2500
Spindle motor
KW
5,5
7,5
Arm horizoltal and vertical traverse motor
KW
2,2
1,1+2,2
Rapid traverse on bed motor
KW
1,5
4
Column clamping
KW
hand operating
0,75
Automatized on request
KW
0,5
--
Machine weight
Kg
4800
9000
