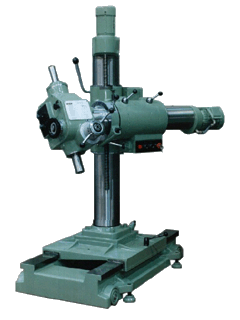

TRANSPORTABLE UNIVERSAL RADIAL DRILLS

TUG 30

TUG 30/TR

TUG 40 S
MODEL
TUG 30
TUG 30/TR
TUG 40 S
Drilling capacity in steel TS 600 MPa
mm
30
32
Drilling capacity in cast iron TS 250 MPa
mm
35
40
Spindle travel
mm
178
190
Quill diameter
mm
65
60
Spindle taper
Morse
3
4
No. spindle rotation speed / range
rpm
8 / 24-48-75-150-380-760-1200-2400
On request spindle speed continuous variation

No. feeds / range
mm/rev
3 / 0,06-0,12-0,24
3 / 0,09-0,12-0,25
Max torque
Nm
100
125
Max drilling thrust
N
4000
4500
Min and max distance between spindle axis and column axis
mm
445-820
410-1030 (1330)
Min and max distance between spindle in horizontal position and floor
mm
580-1250
625-1300
560-1570
Min and max distance between spindle nose in vertical position and floor
mm
70-930
125-975
100-1300
Arm vertical travel
mm
675
1040
Machine height
mm
1930
1980
2000
Column rotation

360°
360°
360°
Vertical column diameter
mm
190
190
190
Horizontal column diameter
mm
170
170
185
Bed size
mm
1150x690
1300x840
1400x840
Column travel on bed
mm
0
600
600
Head rotation

360°
360°
Indexing positioning with vertical spindle

No
ogni 90°
Indexing positioning on request

ogni 90°
---
Arm vertical rapid traverse
mm/min
1200
1650
Spindle motor
KW
1,35-1,7
1,7-2,3
Arm lifting motor
KW
0,55
0,35
Machine weight
Kg
930
1050
1200
Overall dimensions for transport without packing
mm
700x1600x1900
900x1950x2000
1000x2000x2000
With packing
mm
980x1920x2170
950x2000x2100
1100x2100x2200
